3D Printer
The Mobiletty 3D 3D printer, which is used in production, is equipped with two independent extruders that allow you to print objects with complex geometries using soluble supports.
Thanks to independent extruders, it is possible to print two identical objects simultaneously, thereby halving the time
that the production process takes
PRINT
OPTIONS
The Mobiletty 3D 3D printer, which is used in production, is equipped with two independent extruders that allow you to print objects with complex geometries using soluble supports.
Thanks to independent extruders, it is possible to print two identical objects simultaneously, thereby halving the time
that the production process takes

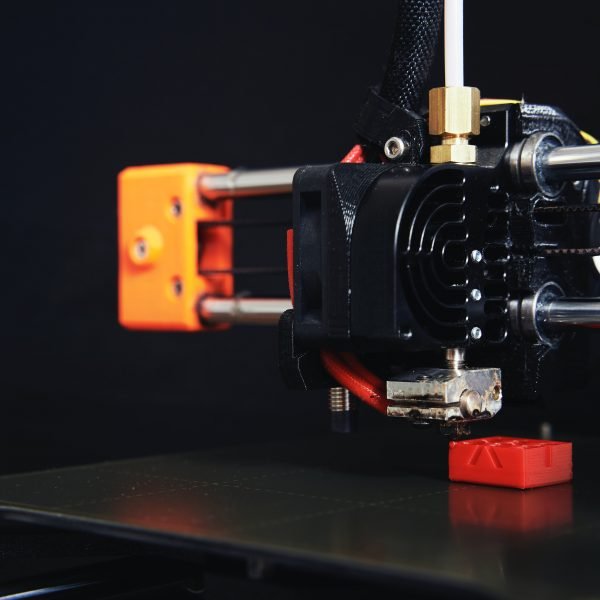

Extruder
Dimensions
Printable area
Table parameters

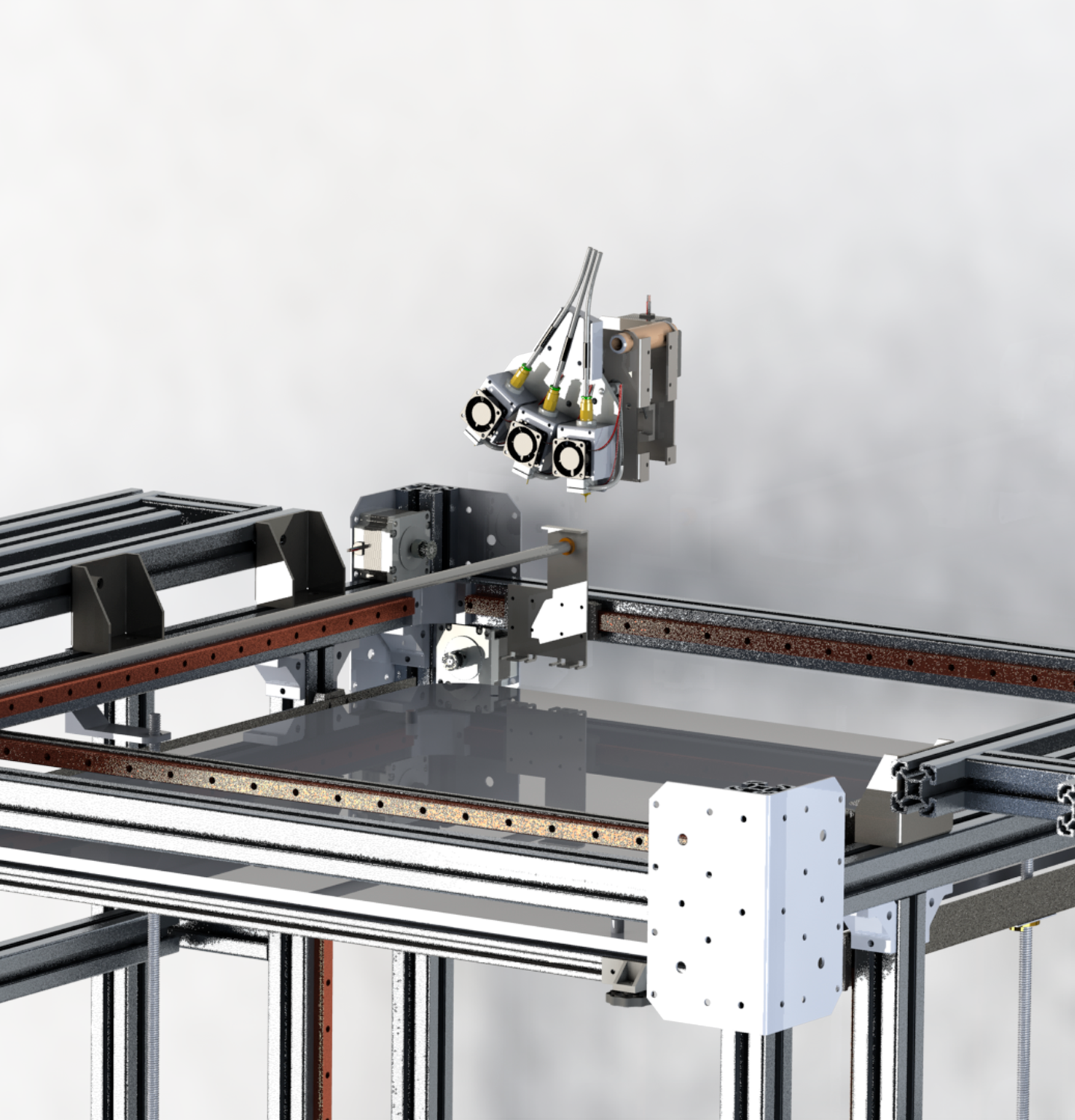

Extruder
| Number of extruders | 3 |
| The minimum layer thickness | 10 microns |
| Supported materials | ABS, PLA, PVA, Nylon (PA), PE, HIPS, FLEX, PC, PP, TPU, PERS |
| Material thickness | 1.75 mm |
| Nozzle | 0.4 mm (optional 0.1, 0.2, 0.6, 0.8, 1.0, 1.2, 1.4 mm) |
| Possibility to pause when printing | YES |
| The maximum printing speed | 200 mm/s |

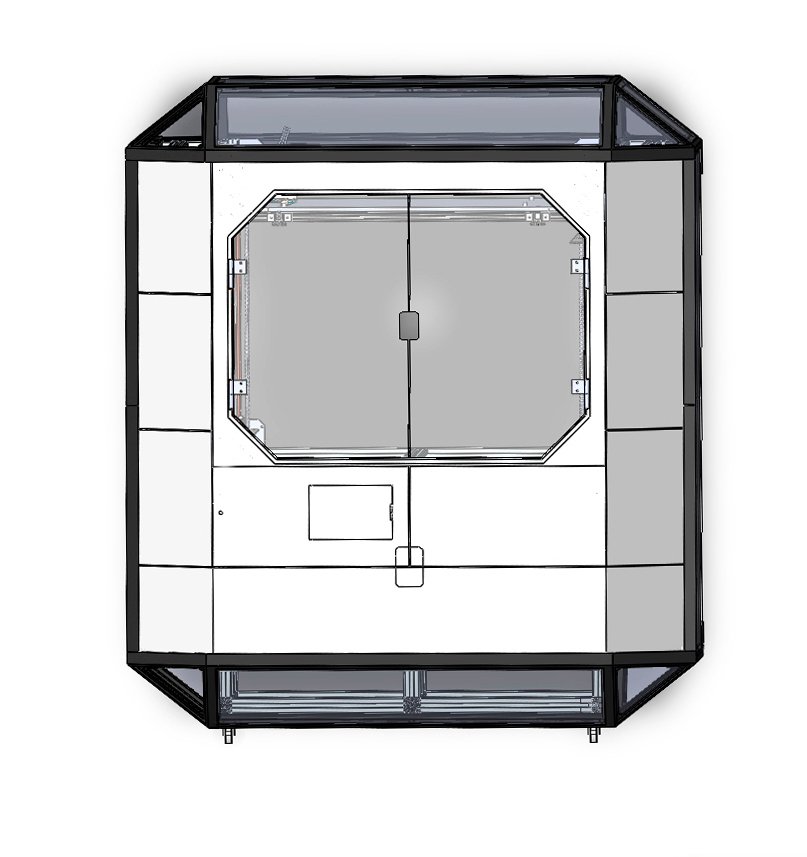

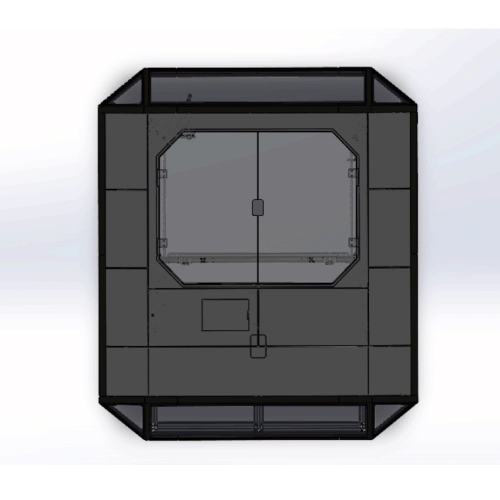

Dimensions
| Height | 1606 mm |
| Length | 1055 mm |
| Width | 1420 mm |
Printable area
| The length of the print area | 550 mm |
| The width of the print area | 550 mm |
| The width of the print area | 550 mm |
| The positioning accuracy of the X, Y axis | 2 microns |
| The positioning accuracy of the Z axis | 5 microns |
Table parameters
| Table material | glass |
| The maximum temperature of the table | 120 °C |
| Table heating | YES |
HOW IS IT CREATED
1
Idea concepting
Product feasibility finalized
Product functions confirmed
2
Prototype complited
3-in2 software completed
Secure supply chain
Start trail-production
3
Assembling and FFC/CE/FDA/ROHS approvals
Wi-Fi function finalized
Start mass-production
Assembling and testing
First batch delivery
3D PRINTER READINESS
